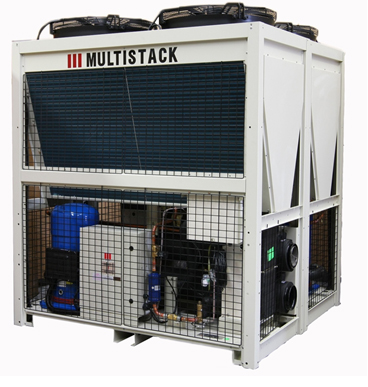

Modular Scroll Air Cooled Chiller SRA145
Multistack SRA145 Series (Air Cooled) use one Danfoss Scroll compressors per refrigeration circuit. Each full module has two independent refrigeration circuits (2 compressors per full module). SRA145 Series is available in two models, heat pump and cooling only. It is also available in a half module. R407c/R134a models come with sophisticated MV7 Control. R410a option comes with CAREL control.
| CHILLER BANK | |||
|---|---|---|---|
| Capacity Range (kW) | 67.5 to 1080 (R407C) | ||
| No. of Modules per Chiller Bank | 0.5 - 8.0 | ||
| Refrigerant | R407c / R134a | ||
| INDIVIDUAL FULL MODULE SPECIFICATION (R407c) | ||
|---|---|---|
| Nominal Capacity (kW) | 135 | |
| Compressor | Type | Scroll - Hermetically Sealed |
| Quantity | 2 | |
| Evaporator | Type | Stainless Steel 316 Brazed Plate Heat Exchanger |
| Quantity | 1 | |
| Condenser | Type | Finned Tubular Heat Exchanger |
| Quantity | 4 | |
| Dimension W x D x H (mm) | 1800 x 1800 x 2050 | |
Note:
For Heat Pump module or refrigerant R134a and R410a Chiller technical data, refer to product brochure
For higher capacity models please contact Multistack.
