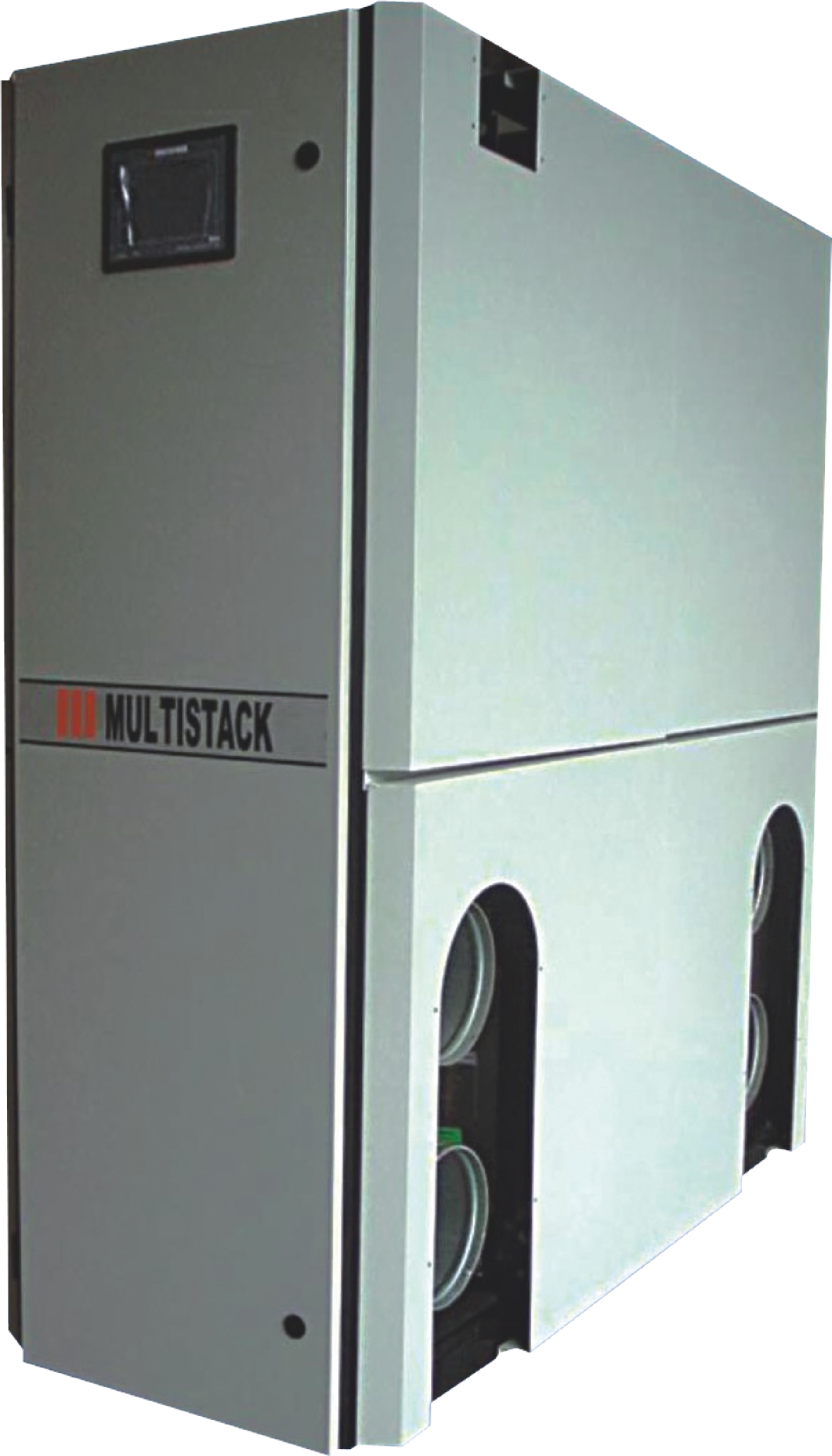

Modular Scroll Water Cooled Chiller SRW145
MSRA Series
Multistack SRW 145 Series (Water Cooled) chillers use one Danfoss Scroll compressors per refrigeration circuit. Each full module has two independent refrigeration circuits (2 compressors per full module) and is also available in a half module. Model comes with sophisticated MV7 Control.
| CHILLER BANK | |||
|---|---|---|---|
| Capacity Range (kW) | 77 to 1232 (R407C) | ||
| No. of Modules per Chiller Bank | 0.5 - 8 | ||
| Refrigerant | R407c / R134a | ||
| INDIVIDUAL FULL MODULE SPECIFICATION (R407c) | ||
|---|---|---|
| Nominal Capacity (kW) | 142.7 | |
| Compressor | Type | Scroll - Hermetically Sealed |
| Quantity | 2 | |
| Evaporator | Type | Stainless Steel 316 Brazed Plate Heat Exchanger |
| Quantity | 1 | |
| Condenser | Type | Stainless Steel 316 Brazed Plate Heat Exchanger |
| Quantity | 1 | |
| Dimension W x D x H (mm) | 550 x 1650 x 1800 | |
Note:
For refrigerant R134a Chiller technical data refer to product brochure
For higher capacity models please contact Multistack.
