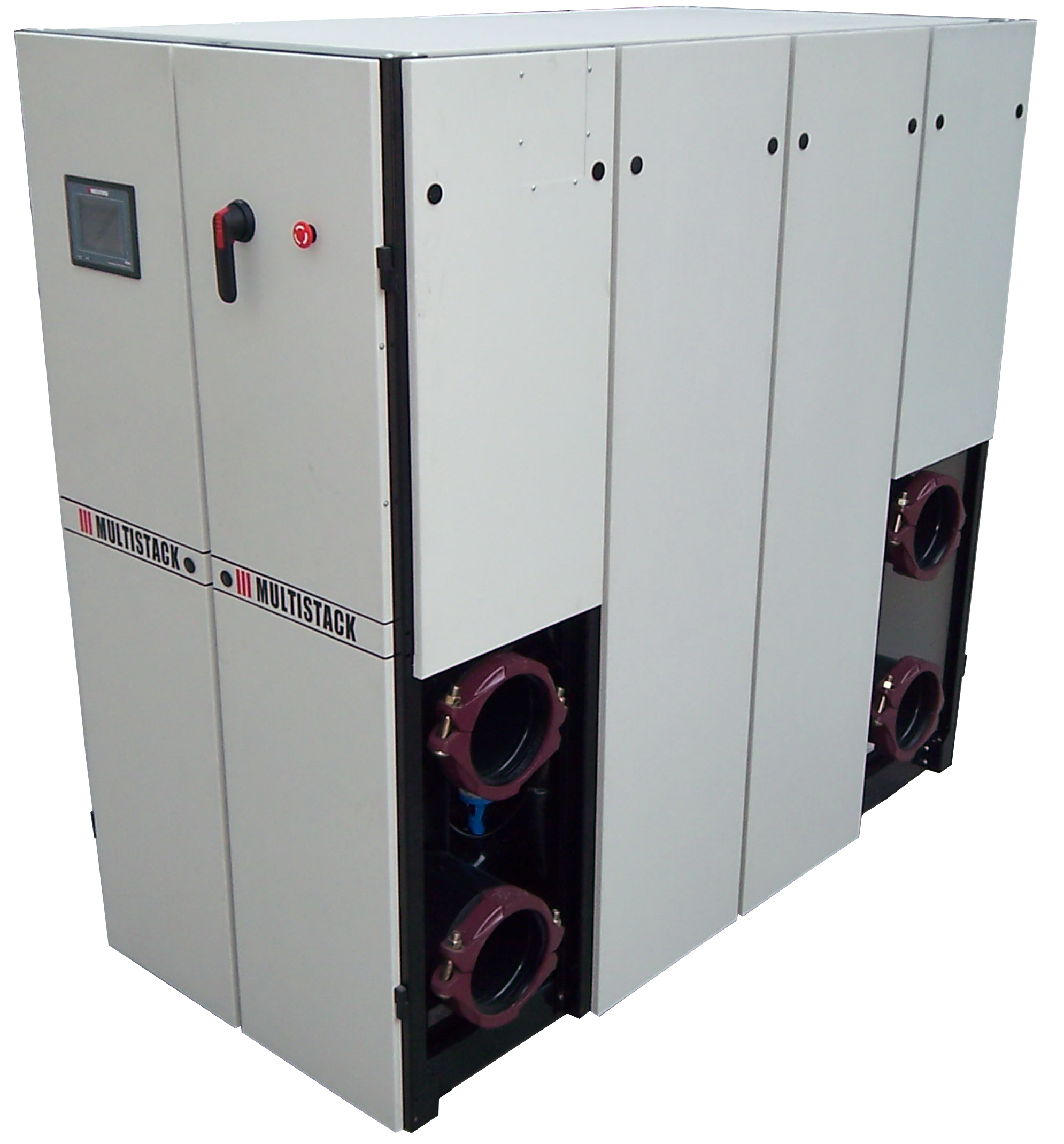

Modular Screw Water Cooled Chiller SCW210
Multistack SCW 210 Series (Water Cooled) chillers use one Bitzer Screw compressor per refrigeration circuit. Each full module has one refrigeration circuits. Model comes with sophisticated MV7 Control.
| CHILLER BANK | |||
|---|---|---|---|
| Capacity Range (kW) | 185.1 to 1480.8 (R407C) | ||
| No. of Modules per Chiller Bank | 1.0 - 8 | ||
| Refrigerant | R407c / R134a | ||
| INDIVIDUAL FULL MODULE SPECIFICATION (R407c) | ||
|---|---|---|
| Nominal Capacity (kW) | 185.1 | |
| Compressor | Type | Screw - Semi-Hermetically Sealed |
| Quantity | 1 | |
| Evaporator | Type | Stainless Steel 316 Brazed Plate Heat Exchanger |
| Quantity | 2 | |
| Condenser | Type | Stainless Steel 316 Brazed Plate Heat Exchanger |
| Quantity | 2 | |
| Dimension W x D x H (mm) | 550 x 2030 x 1895 | |
Note:
For refrigerant R134a Chiller technical data refer to product brochure
For higher capacity models please contact Multistack.
